Axial Flow Check Valve RF BB Type OS Yoke Design Stable Performance

China Axial Flow Check Valve RF BB Type OS Yoke Design Stable Performance supplier

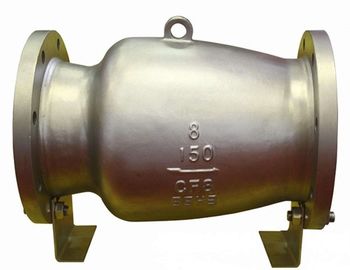

Large Image :  Axial Flow Check Valve RF BB Type OS Yoke Design Stable Performance

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 2"-40", CL150-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 30-70days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 2"~40" Pressure Rating:: Class 150~1500
Material:: WCB, LCB,WC6, WC9, C12, C5,CF8, CF8M, CF3, CF3M Etc Design & Manufacturing Standard:: API 600, BS 1868, ASME B16.34
Face To Face:: ASME B16.10, API 6D BSEN558 End Connection:: ASME B16.5, ASME B16.47, ASME B1.20.1 , ASME B16.11,DIN 2453-2551, ASME B16.25
Test And Inspection:: ISO 5208, API600,BS 6755 Operation Method:: Swing Type, Lifting Type

Axial flow cast check valve 2"-40" CL150-1500 RF, BB type, OS&yoke design


Kelite axial flow cast check valves are designed and manufactured to provide maximum service life and dependability. All check valves meet the design requirements of American Petroleum Institute standard API600 & 6D.BS EN 13709 and generally conform to American Society of Mechanical Engineers standard ASME B16.34. Valves are available in a complete range of body/cover materials and trims.


Technical parameters and characteristics:


Product type ON/OFF
Product description Axial-flow type check valve
Model HL43H-axial-flow type check valve
Nominal diameter 2”~40”(50mm~1000mm)
Operating temperature -196℃~593℃(the range of service temperature may vary for different materials)
Operating pressure 150-1500 CLASS
Material Main material: A216 WCB,WCC; A217 WC6,WC9,C5,C12,C12A,CA15; A351 CF8,CF8M,CF3,CF3M,CF8C,CN3MN,CK3MCUN,CN7M; A352 LCB,LCC; A494 CW-6MC,CU5MCuC,M35-1; A890 4A(CD3MN),5A(CE3MN),6A(CD3MWCuN); ASME B 148 C95800,C95500, etc.
Design standard API 600 ,API 6D ,ASME B16.34
Structural length ASME B16.10
Connecting end ASME B16.5,ASME B16.25,GB 9113,GB 12224
Test standard API 598,ISO 5208,JB/T9092,GB/T13927
Operation method The valve clack is automatically opened and closed under the medium force.
Application fields Water, steam, petroleum, natural gas, etc.
Other remarks 1 The sealing faces of valve seat and valve clack are build-up welded with hard alloy to improve the erosion resistance and extend the service life of valve.
Other remarks 2 Streamline flow pass, no bypass of medium, small valve flow resistance, and energy saving
Other remarks 3 Suitable for medium backflow prevention in pipeline or device
Other remarks 4 The floating valve clack structure is adopted to automatically compensate the error caused by wearing during installation and operation, to ensure the tight mating of sealing faces and improve the sealing performance.
Other remarks 5 Due to the short opening and closing travel and the automatic resetting without impact, the valve can be fully opened with a small flow rate, and the closing time can be short.
