Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

China Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service supplier

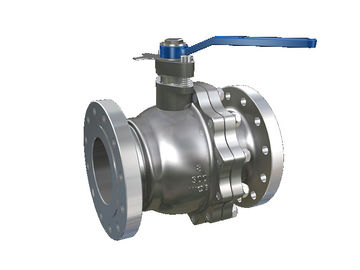

Large Image :  Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

Product Details:

Place of Origin: China
Brand Name: Kelite Valve
Certification: API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Model Number: 1/2"-8", CL150-600

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Plywood packing or fumigation packing
Delivery Time: 20-70days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000-5000PCS per month
Contact Now
Detailed Product Description
Size:: NPS 1/2"~8" Pressure Rating:: Class 150~600
Material:: WCB, LCB, CF8, CF8M, CF3,CF3M Design Standard:: API 608, API 6D, BS 5351, ASME B16.34
Face To Face:: ASME B16.10, API 6D, BSEN 558 End Connection:: ASME B16.5, BSEN 1092

Two piece casting floating type ball valve of 1/2"-8" CL150-600 API 6D , 608 desgin



Product descriptions

Split body, full bore/reduced bore, floating ball, fire-safe certified to API-607/6FA, anti-blow out stem, cavity relieving seats, anti-static device, RTFE, Delrin, NYLON&DEVLON seat inserts. Floating ball valves are designed, constructed and tested according to the most recent international standards, such as API, ASME, BS, DIN, etc.

Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM ServiceTwo Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service



Product description Side-mounted floating ball valve
Model Floating ball valve
Nominal diameter NPS 1/2~NPS 8
Operating temperature -46℃~220℃

Operating pressure

CLASS 150~CLASS 600
Material WCB,LCB,CF8,CF8M,etc.
Design standard API 608,ISO 17292,BS 5351
Structural length ASME B16.10
Connecting end ASME B16.5,ASME B16.25
Test standard API 598, API 6D
Operation method Handle, worm, motor-drive unit, pneumatic drive unit
Application fields Water, petroleum and natural gas

Other remarks 1

A locking device is provided to prevent misoperation of valve.
Other remarks 2 Valve stem flyout prevention structure design, to prevent accident due to flyout of valve stem caused by abnormal pressurization in the chamber
Other remarks 3 Fireproof and antistatic design
Other remarks 4 Full bore of valve convenient for pigging, of small flow resistance and high flow capacity



Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service
